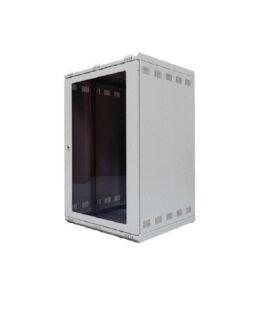

Wall-Mount-Rack-6U
Wall-Mount-Rack-6U
₹4,500.00
Rigid welded frame. Depth 500mm Top and bottom cable entry provision. Load Capacity 40Kg and 20Kg (Double Section). Glass door with lock. Steel Cabinet powder coated light grey. Ships fully assembled Front section will be hinged to Rear Section with locking provision. Basic Frame : MS, CRCA Manufacturing Standard: ISO 9001:2008 90 CFM Fan 1U Cantilever Shelf PDU 6 Sockets 5/13 Amps
| Load Capacity | 40 kg and 20 kg (Double Section) |
| Depth | 500 mm |
| Basic Frame | MS,CRCA |
| Manufacturing Standard | ISO 90012008 |
| Features | 90 CFM Fan 1U Cantilever Shelf PDU 6 Sockets 5/13 Amps |
Specifications & Features
Depending on design (open-frame vs enclosed cabinet; shallow vs deeper depth), specs vary. Here’s a typical range:
| Spec / Feature | Common / Typical Values / Description |
|---|---|
| Rack Units (U) | 6U (~ 266–270 mm usable vertical rack height) resource.fs.com+1 |
| Rack Width (mounting width) | ~ 19″ (standard rack-mount) — compatible with standard rack-mount devices. dcd.com.my+1 |
| Depth (internal/usable vs external) | Depends: some “shallow” or open-frame 6U racks have ~ 300–400 mm depth (suitable for patch-panels, small switches), others (cabinet-style) go deeper — 400–450 mm or more — better for devices needing more depth or space for cabling. resource.fs.com+2store.apolloofficesystems.com+2 |
| Material / Build | Usually steel (cold-rolled / SPCC / similar) for strength and durability; powder-coated finish common. resource.fs.com+1 |
| Mounting Rails / Mounting Standard | 2-post or 2/4-post design, adjustable mounting rails, EIA / EIA-310 (or equivalent) compliance for 19″ gear. dcd.com.my+1 |
| Load / Weight Capacity | Many 6U wall-mount cabinets support ~ 90 kg (≈ 200 lb) static load — sufficient for multiple network devices / small servers. vb.net+1 |
| Doors / Panels / Security (if cabinet style) | Some have lockable front doors (glass or metal), side panels (sometimes removable), possibly back panel — useful for security / dust protection. RS Components+2luggar.net+2 |
| Cable Management / Ventilation / Fan-Support | Many cabinets offer cable entry points, support for ventilation or fan installation (especially if gear produces heat), and space for wiring/cables. store.apolloofficesystems.com+2StarTech Media+2 |
| Weight | 15 kg |
|---|
