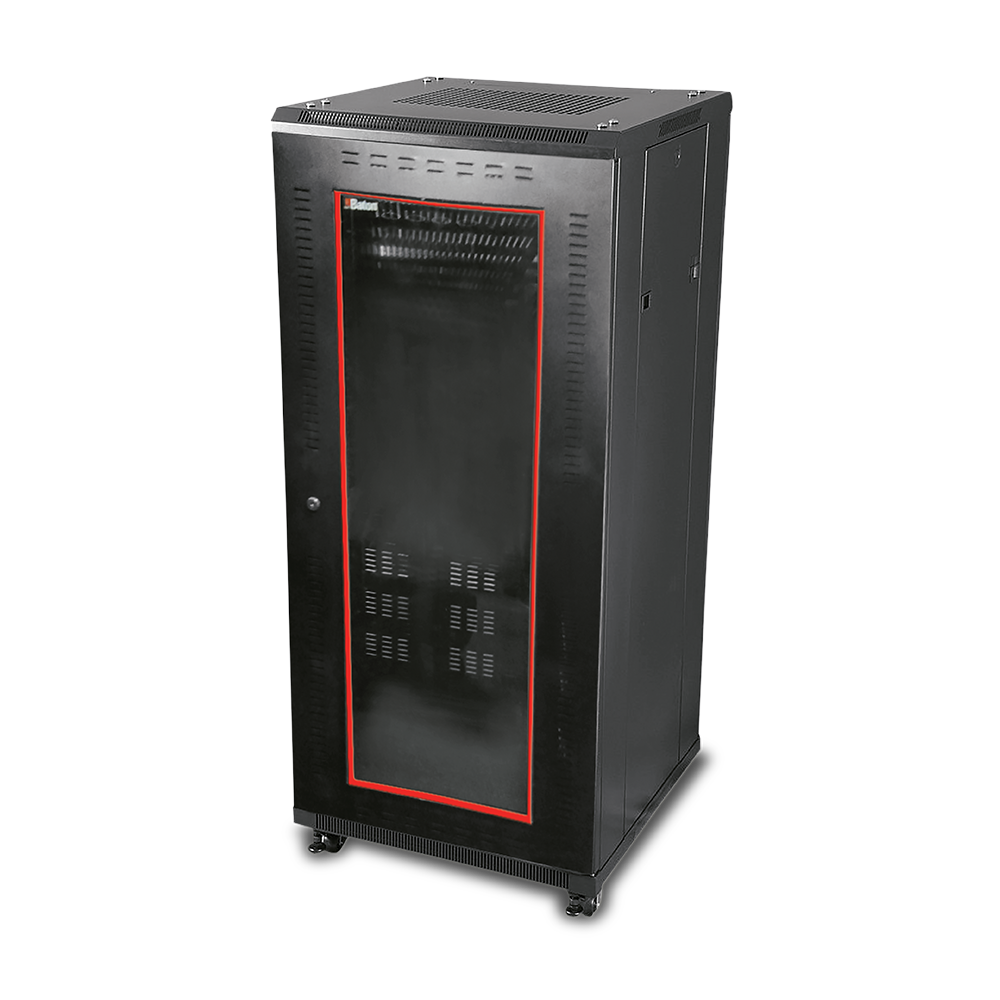

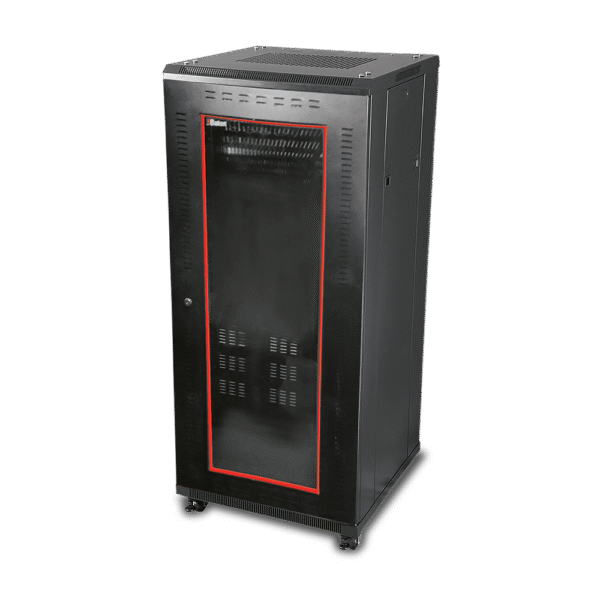

27U-Floor-Standing-Rack
27U-Floor-Standing-Rack
₹32,000.00Current price is: ₹32,000.00. Original price was: ₹34,500.00.
Rigid welded frame. Depth 1000 Top and bottom cable entry provision. Glass door with lock. Side Panesl 2nos Ships fully assembled Front Glass Door section will be hinged to Rear Section with locking provision. Basic Frame : MS, CRCA 90 CFM Fan, 2nos Horizontal Cable Manager 1U Loop, 1no PDU 6 Sockets 5/13 Amps Hardware Kit Manufacturing Standard: ISO 9001:2008
Specifications & Features for 27U Floor-Standing Rack
-
Rack Capacity (Height): 27U — usable vertical space ~ 27 × 44.45 mm ≈ ~1190–1210 mm (may vary slightly by manufacturer). sysaway.com+2Photopoint+2
-
Footprint (External Width × Depth): Commonly 600 mm (W) × 800 mm (D). Zortex Computer+2Photopoint+2
-
External Height: Typically ~ 1380–1400 mm (some variation ± 10–50 mm depending on base, casters, leveling feet, build). sysaway.com+2SysAway+2
-
Mounting Standard: 19″ rack-mount standard (EIA-310 / IEC / DIN 41494 or equivalent) — suitable for standard rack-mount servers, switches, networking gear. Photopoint+2its.dlink.co.in+2
-
Construction & Material: Cold-rolled / CRCA / SPCC steel frame; sheet steel, often powder-coated (black, grey or RAL-coded finish) for robustness and corrosion resistance. Secureserviceplus+2rackom.in+2
-
Doors & Panels: Usually a lockable front door (glass tempered or perforated / mesh / vented metal) + rear door (steel, vented/perforated); removable or lockable side panels for maintenance/access. luggar.net+2Photopoint+2
-
Ventilation / Cooling Provisions: Ventilated top/bottom panels; many racks support optional fan-tray mounting on top; cable entry / exit cutouts top & bottom for clean wiring; good airflow / heat dissipation support. its.dlink.co.in+2Photopoint+2
-
Mounting Rails / Depth Adjustment: 19″ vertical mounting rails (front and rear) — some allow adjustable depth to accommodate deeper equipment (depending on rack depth and internal layout). Secureserviceplus+2rackom.in+2
-
Mobility / Base: Floor-standing design with casters (wheels) + leveling feet or levelers / base-plinth. Often front wheels have brakes. Secureserviceplus+2rackom.in+2
-
Load Capacity / Static Load: Many 27U 600×800 racks are rated for ~800 kg static load (depending on build quality, leveling feet, weight distribution). Some manufacturer datasheets quote up to 1000 kg when using proper leveling feet and stable floor. sysaway.com+2kraod.com+2
-
Standards & Compliance: Typically compliant with rack-mount / cabinet standards: ANSI/EIA RS-310-D, DIN 41494 / IEC 297 / ETSI / 19″ rack norms. Photopoint+2its.dlink.co.in+2
| Weight | 80 kg |
|---|
