Yealink UVC86
Yealink UVC86
₹184,000.00
| Product Type | 4K Dual-Eye Intelligent Tracking Camera |
|---|---|
| Model Name/Number | UVC86 |
| Brand | Yealink |
| Camera Type | Dual-eye PTZ + Panoramic Camera |
| Video Resolution | Up to 4K at 30fps |
| PTZ Sensor | 8MP Sony Sensor |
| Panoramic Sensor | 8MP Sony Sensor |
| PTZ Field of View | 90° DFOV / 81° HFOV / 50° VFOV |
| Panoramic Field of View | 120° DFOV / 110° HFOV / 78° VFOV |
| Zoom | 20.4x HD Zoom / 12x Optical + 1.7x Digital |
| Pan | ±100° |
| Tilt | +40° / -90° |
| Camera Presets | 9 |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus, Picture-in-Picture |
| USB | 1 × USB 3.0 Type-B |
| USB-A | 1 × USB 2.0 Type-A |
| HDMI | 1 × HDMI Out |
| Network/Expansion | 1 × Yealink VCH RJ45 |
| Audio | 1 × 3.5mm Line-In |
| Dimensions | 210 × 156 × 156mm working; 210 × 156 × 183mm sleeping |
| Weight | 3.27kg |
| Installation | Table, TV, Wall, Ceiling, Tripod |
| Application | Medium & Large Meeting Rooms |
Product Description

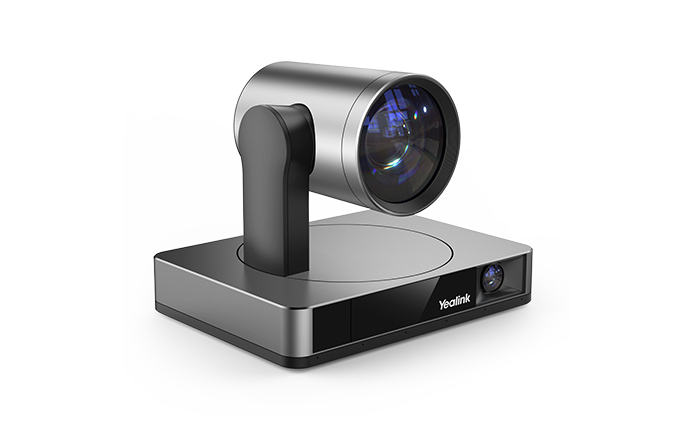

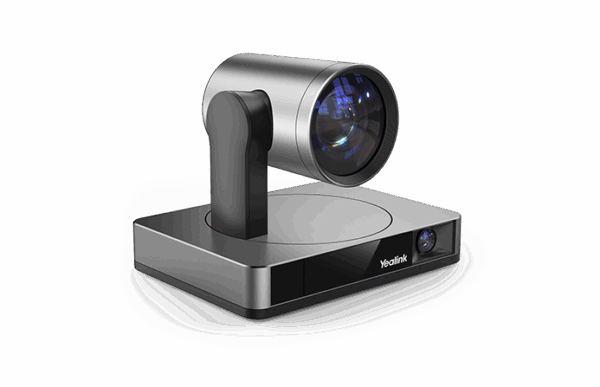

The Yealink UVC86 is a professional 4K dual-eye intelligent tracking camera designed for medium and large meeting rooms, conference rooms, training rooms, and professional video collaboration environments. It combines an 8MP Sony PTZ camera with an 8MP panoramic camera to provide detailed video coverage of participants and the entire meeting space. The camera supports 4K video at up to 30 frames per second and provides up to 12x optical zoom for clear close-up images.
The UVC86 incorporates intelligent AI-powered features including Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus and Picture-in-Picture, helping remote participants maintain a natural view of meetings. Its panoramic camera provides a 120° diagonal field of view for participant detection, while the PTZ camera offers a 90° diagonal field of view for detailed tracking and presentation.
The PTZ camera supports mechanical pan and tilt, with ±100° pan and +40°/-90° tilt, along with up to nine camera presets. The UVC86 can be controlled using its remote control or Yealink camera control software. It also provides USB, HDMI and Yealink VCH connectivity for flexible conference-room deployments and integration with compatible Yealink audio devices and room systems.
The Yealink UVC86 supports flexible installation on a conference table, TV stand, wall, ceiling, TV or tripod. Its USB plug-and-play design makes it suitable for professional meeting-room and BYOD video conferencing applications.
Key Features
- 4K dual-eye intelligent tracking camera
- Dual 8MP Sony camera sensors
- 4K video up to 30fps
- PTZ camera with 12x optical zoom
- 20.4x HD zoom
- 90° DFOV PTZ camera
- 120° DFOV panoramic camera
- Auto Framing
- Speaker Tracking
- Presenter Tracking
- Multi-Focus and Picture-in-Picture
- Mechanical pan and tilt
- ±100° pan and +40°/-90° tilt
- Up to 9 camera presets
- USB 3.0 connectivity
- HDMI output
- Yealink VCH RJ45 port
- 3.5mm line-in
- Compatible with Yealink audio devices
- Flexible table, wall, ceiling, TV and tripod installation
- Designed for medium and large meeting rooms
