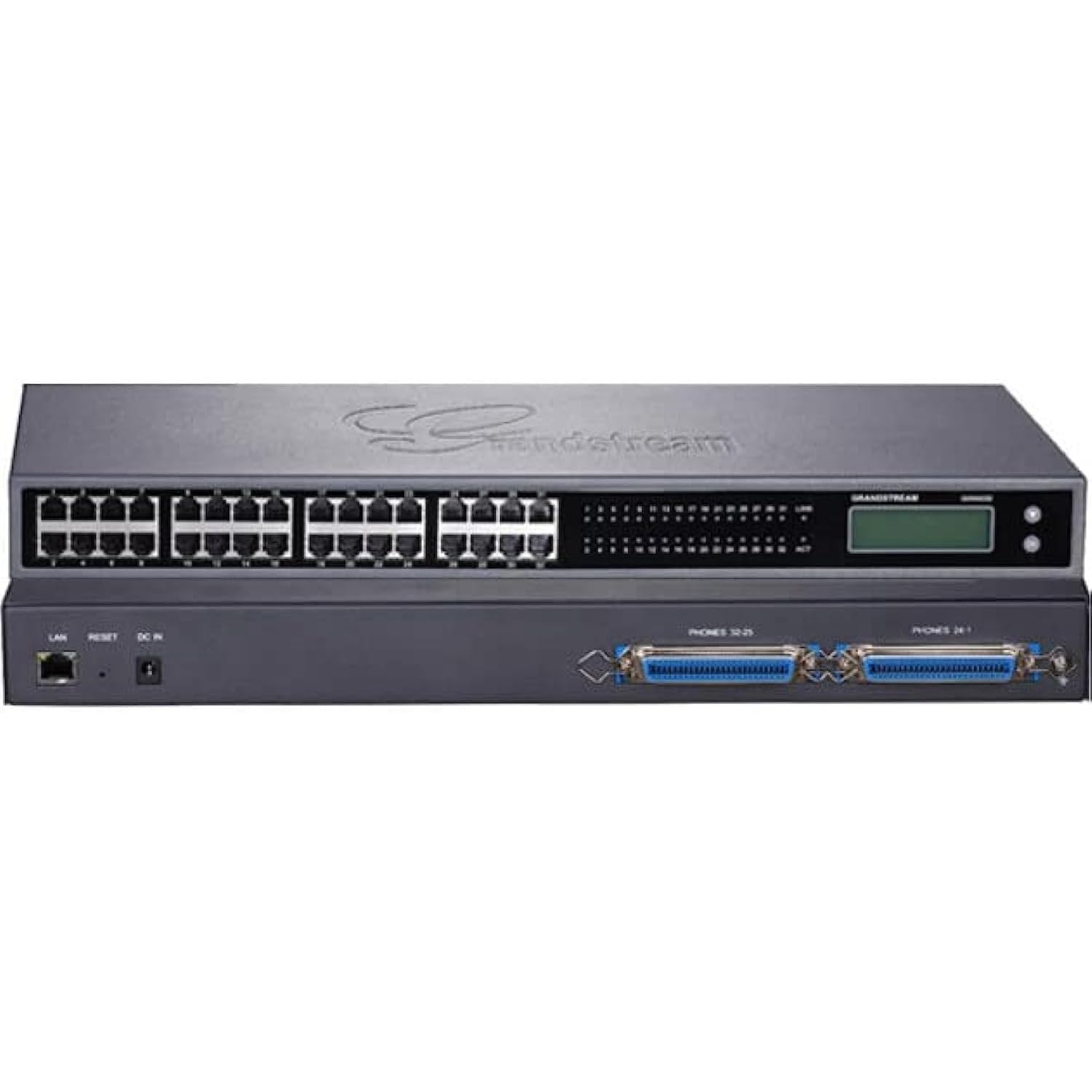

Grandstream GXW4232 32-Port FXS VoIP Gateway

Sold: 0

₹59,032.00

Network Equipment Type	FXS VoIP Gateways
Model Name/Number	GXW4232
Brand	Grandstream
Product Type	32-Port FXS VoIP Gateway
FXS Ports	32
SIP Accounts	32 SIP Accounts
SIP Server Profiles	4
Telephone Interface	32 × RJ11 / 2 × RJ21 Telco Connectors
Network Interface	1 × 10/100/1000 Mbps RJ45 Gigabit Ethernet
Voice Sampling	Up to 16kHz Wideband
Voice Codecs	Opus, G.722, G.711, G.723.1, G.726, G.729, iLBC
Fax Support	T.38 Fax over IP
Conference	3-Way Voice Conferencing per Port
Signaling	SIP (RFC 3261)
SIP Transport	UDP, TCP and TLS
Security	SRTP, TLS/SIPS, HTTPS, Secure Boot
Display	128 × 32 Backlit LCD
Echo Cancellation	G.168 Echo Cancellation
Voice Features	VAD, CNG, PLC and Dynamic Jitter Buffer
Caller ID	Bellcore Type 1 & 2, ETSI, BT, NTT, FSK and DTMF
QoS	DiffServ, TOS, 802.1P/Q VLAN Tagging
Management	Web Interface, HTTPS, Syslog and SSH
Mounting	Desktop and Rack Mount
Applications	Offices, Hotels, Hospitals, Enterprises and Businesses
Device Type	Analog-to-VoIP FXS Gateway

Contact Optima Technologies for Grandstream GXW4232 pricing and deployment requirements in India.

Product Description

The Grandstream GXW4232 IP Gateway is a high-density 32-port FXS VoIP gateway designed to connect traditional analog telephones and other analog devices to modern IP-based communication networks. It allows businesses to continue using existing analog telephone infrastructure while taking advantage of SIP, VoIP, and IP-PBX systems. Grandstream’s GXW4200 Series includes 16-, 24-, 32-, and 48-port models, with the GXW4232 providing 32 FXS ports.

The GXW4232 supports 32 independent SIP accounts and up to four SIP server profiles, allowing individual analog ports to be registered and managed through SIP-based communication platforms. It includes two 50-pin RJ21 Telco connectors and a Gigabit Ethernet interface for reliable network connectivity. The gateway is designed and tested for interoperability with leading IP-PBXs, softswitches, and SIP platforms.

For high-quality communication, the gateway supports wideband voice with 16kHz sampling and codecs such as Opus and G.722. It also supports simultaneous 3-way voice conferencing per port, along with echo cancellation, dynamic jitter buffering, voice activity detection, comfort noise generation, and packet-loss concealment. T.38 fax support enables communication with compatible fax equipment over IP networks.

The Grandstream GXW4232 also provides advanced security features including SRTP, TLS/SIPS, HTTPS, secure boot, unique device certificates, and randomized default passwords. Its desktop and rack-mount design makes it suitable for offices, hotels, hospitals, enterprises, and other organizations requiring a large number of analog extensions.
