Dasscom DS 30w wall speaker for clear background music and public address audio applications
View details

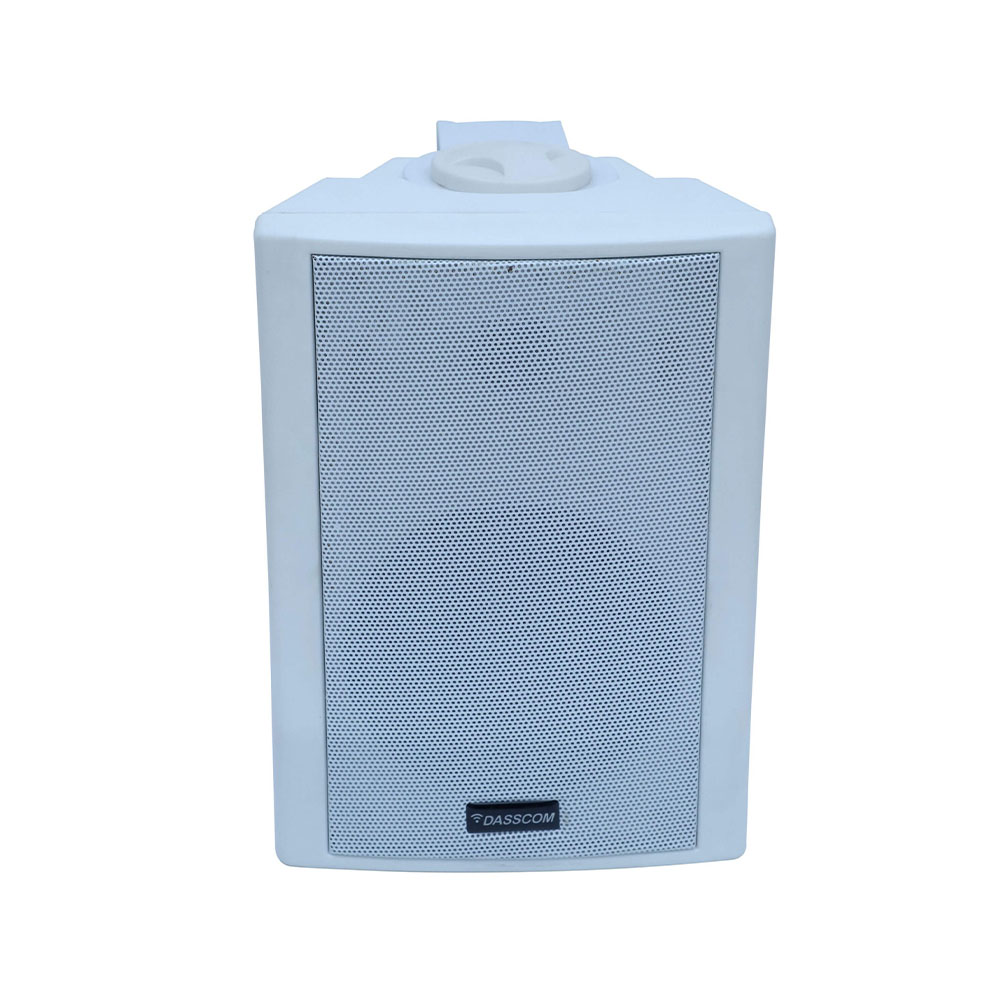

Dasscom Wall speaker DS-30w

Sold: 0

₹17,000.00

Network Equipment Type SIP Network Wall Mount Speaker
Model Name/Number DS-30W
Brand Dasscom
Speaker Type Network Wall Mount Speaker
Rated Power 30W
Amplifier Built-in 30W Class-D
Speaker Driver 5.25″ Woofer + 1.5″ Tweeter
Frequency Response 70Hz–20kHz
Sensitivity 85dB/1m/1W
Maximum SPL 100dB
Coverage Pattern 90°H / 50°V
Coverage Area Approx. 30m²
Acoustics Mono
Audio Codecs G.722, G.711 A-law, G.711 U-law, G.729
Audio Streaming MP3, 8–48kHz, 64–320kbps
Ethernet RJ45 10/100Base-T
PoE IEEE 802.3at
Power Input PoE / 24V DC 2A
Protocols SIP, HTTP/HTTPS, IPv4, RTP, RTSP, MQTT, DHCP, TCP/UDP
Configuration Web Interface / Auto Provisioning
Memory 128MB RAM / 256MB Flash
Casing UL94-V0 ABS
Grille Surface-treated Metal Mesh
Mounting Wall Mounted
Dimensions 240 × 180 × 150mm
Weight Approx. 3.29kg
Color White / Black
Installation Indoor
Operating Temperature -20°C to 50°C
Dasscom DS-30W Dasscom DS-30W Wall Speaker Dasscom DS-30W Wall Mount Speaker Dasscom DS-30W Network Speaker Dasscom DS-30W SIP Speaker Dasscom DS-30W IP Speaker Dasscom DS-30W 30W Speaker Dasscom DS-30W PoE Speaker Dasscom DS-30W PoE Wall Speaker Dasscom DS-30W price Dasscom DS-30W India Dasscom DS-30W Bangalore Dasscom DS-30W network wall speaker Dasscom DS-30W SIP wall speaker Dasscom DS-30W IP wall speaker Dasscom DS-30W public address speaker Dasscom DS-30W PA speaker Dasscom DS-30W paging speaker Dasscom DS-30W announcement speaker Dasscom DS-30W background music speaker Dasscom DS-30W SIP paging speaker Dasscom DS-30W IP paging speaker Dasscom DS-30W PoE speaker Dasscom DS-30W 5.25 inch speaker Dasscom DS-30W woofer tweeter speaker Dasscom DS-30W Class D amplifier Dasscom DS-30W network audio speaker Dasscom wall mount speaker Dasscom network speaker Dasscom SIP speaker Dasscom IP speaker Dasscom PoE speaker Dasscom public address system Dasscom IP PA system SIP wall mount speaker IP wall mount speaker PoE wall mount speaker 30W wall mount speaker 30W SIP speaker 30W IP speaker Network wall speaker Network paging speaker IP paging speaker SIP paging speaker IP public address speaker SIP public address speaker IP announcement speaker IP background music speaker Network audio speaker India IP speaker India SIP speaker India PoE speaker India Commercial wall speaker Office PA speaker School paging speaker Hospital paging speaker Hotel PA speaker
Categories:
Dasscom DS-15W wall speaker for clear background music and public address audio applications
Dasscom Wall speaker DS-15w
Dasscom Celling Speaker Ds-10c
Dasscom Ds 10c ceiling speaker for clear background music and public address audio applications

Product Description

The Dasscom DS-30W Wall Mount Speaker is a professional 30W SIP-enabled network wall speaker designed for IP-based public address, paging, announcements, alerts, and background music applications. It is an indoor PoE-enabled speaker that combines network connectivity, built-in amplification, and SIP communication in a wall-mounted cabinet design. Dasscom lists the DS-30W as a 30W wall-mount speaker supporting SIP, PoE, BGM, and announcements.

The DS-30W uses a dual-driver speaker design with a 5.25-inch woofer and 1.5-inch tweeter, providing a combination of voice clarity and full-range audio reproduction. It has a built-in 30W Class-D amplifier, a frequency range of 70Hz–20kHz, and a maximum sound pressure level of approximately 100dB. The speaker provides 90° horizontal and 50° vertical coverage with approximately 30m² coverage.

For network communication, the DS-30W supports SIP paging and can integrate with the Dasscom IP Audio Center or compatible third-party SIP servers. It supports G.722, G.711 A-law, G.711 U-law, and G.729 audio codecs. MP3 streaming is also supported for background music applications.

The speaker supports IEEE 802.3at PoE, allowing power and network connectivity through a single Ethernet cable. It can also use an external 24V DC power source. Auto-provisioning and web-based configuration simplify deployment in larger IP public address installations. The DS-30W uses an ABS enclosure with a metal mesh grille and is designed for indoor wall mounting.

With its 30W output, SIP compatibility, PoE connectivity, and dual-driver audio system, the Dasscom DS-30W is suitable for offices, schools, hospitals, hotels, retail spaces, factories, campuses, and other indoor environments requiring centralized IP-based audio communication.

Key Features

  • 30W SIP-enabled network wall speaker
  • Indoor wall-mount design
  • Built-in 30W Class-D amplifier
  • 5.25-inch woofer + 1.5-inch tweeter
  • Dual-driver audio design
  • SIP paging and IP audio support
  • Supports Dasscom IP Audio Center
  • Supports third-party SIP servers
  • G.722 HD voice codec
  • G.711 A-law/U-law and G.729 support
  • MP3 background music streaming
  • IEEE 802.3at PoE support
  • 10/100 Mbps Ethernet
  • Auto-provisioning
  • Web-based configuration
  • 90° horizontal / 50° vertical coverage
  • Approximately 30m² coverage
  • Local or server-controlled volume
  • ABS enclosure with metal mesh grille
  • Indoor installation
  • Available in white and black variants
Weight 0.7 kg
