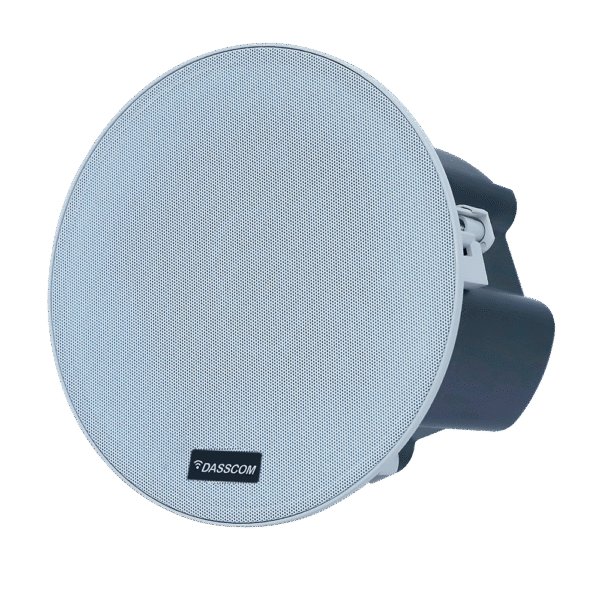

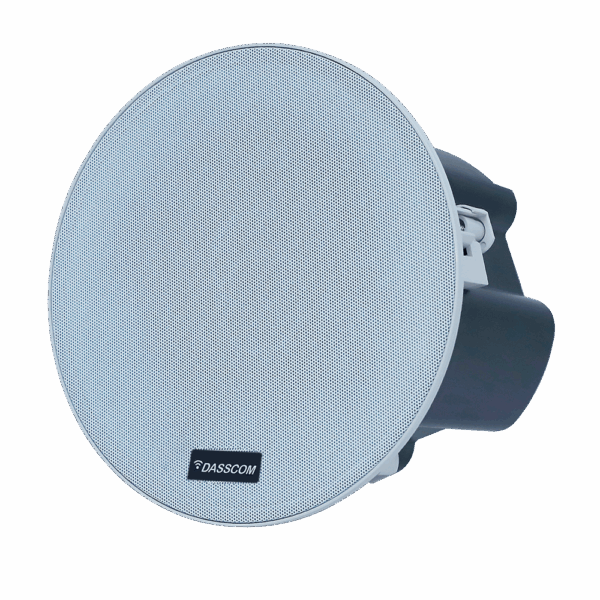

Dasscom Ds 10c ceiling speaker for clear background music and public address audio applications
View details

Dasscom Celling Speaker Ds-10c

Sold: 0

₹14,000.00

Network Equipment Type SIP Network Ceiling Speaker
Model Name/Number DS-10C
Brand Dasscom
Speaker Size 6 Inch
Rated Power 10W
Amplifier Single-Channel Class D
Average Sensitivity 91dB/1m/1W
Frequency Response 70Hz–20kHz
THD <0.1%
Maximum SPL 101dB at 1m (Passive)
Coverage Pattern 90°H / 50°V
Coverage Area Approx. 30m²
Network Audio G.722, G.711 A-law, G.711 U-law, Opus
Ethernet IEEE 802.3 10/100Base-T
PoE IEEE 802.3at PoE+
Protocols SIP, HTTP, TCP/IP, SSL, DNS, SNTP, NTP, MQTT, ICMP, DHCP, RTSP, RTP, RTCP, TCP, UDP
IP Addressing DHCP / Static
Memory 128MB RAM / 256MB Flash
Power Input PoE+ / External 24V DC
Casing Cold-rolled steel with textured white epoxy finish
Mounting Surface / Flush Mounted
Color White
Weight Approx. 2kg
Surface Dimensions 280 × 280 × 65mm
Flush Dimensions 300 × 300 × 65mm
Installation Indoor
Operating Temperature -20°C to 50°C
Warranty 2 Years Limited
Dasscom DS-10C Dasscom DS-10C Ceiling Speaker Dasscom DS-10C SIP Ceiling Speaker Dasscom DS-10C Network Ceiling Speaker Dasscom DS-10C 10W Ceiling Speaker Dasscom DS-10C IP Speaker Dasscom DS-10C SIP Speaker Dasscom DS-10C PoE Speaker Dasscom DS-10C PoE Ceiling Speaker Dasscom DS-10C price Dasscom DS-10C India Dasscom DS-10C Bangalore Dasscom DS-10C network speaker Dasscom DS-10C IP ceiling speaker Dasscom DS-10C public address speaker Dasscom DS-10C PA speaker Dasscom DS-10C paging speaker Dasscom DS-10C announcement speaker Dasscom DS-10C BGM speaker Dasscom DS-10C background music speaker Dasscom DS-10C 6 inch speaker Dasscom DS-10C 10W speaker Dasscom DS-10C SIP IP speaker Dasscom DS-10C network audio speaker Dasscom DS-10C PoE+ speaker Dasscom SIP ceiling speaker Dasscom network ceiling speaker Dasscom IP ceiling speaker Dasscom IP speaker India Dasscom SIP speaker India Dasscom PoE speaker India SIP ceiling speaker SIP network speaker IP ceiling speaker IP network speaker PoE ceiling speaker 10W ceiling speaker 6 inch ceiling speaker Network public address speaker IP public address speaker IP paging speaker SIP paging speaker Network paging speaker IP PA system speaker IP announcement speaker Background music IP speaker Network audio speaker India IP PA speaker India Commercial ceiling speaker Office ceiling speaker School PA speaker Hospital paging speaker
Categories:
Dasscom DS 30w wall speaker for clear background music and public address audio applications
Dasscom Wall speaker DS-30w
Dasscom Celling Speaker Ds-q10
Dasscom DS-Q10 ceiling speaker for clear background music and public address audio applications

Product Description

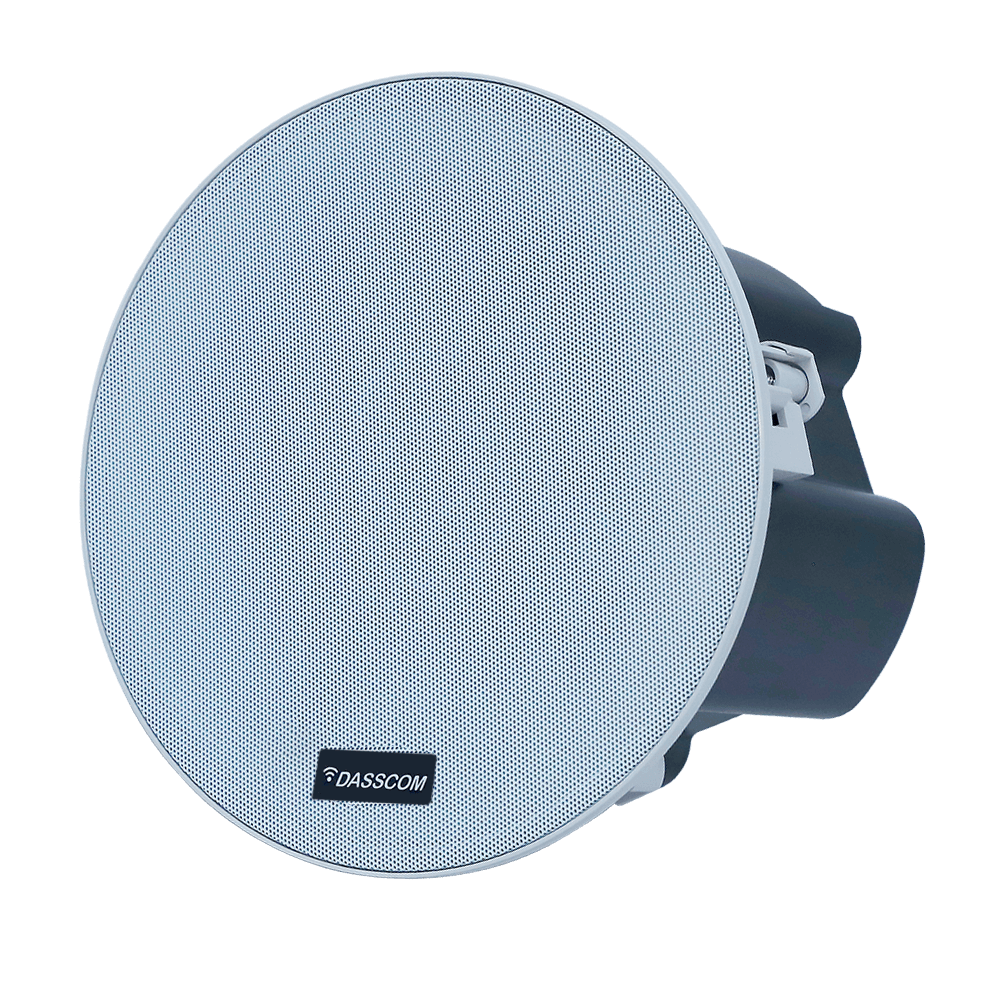

The Dasscom DS-10C Ceiling Speaker is a SIP-enabled 10W network ceiling speaker designed for IP-based public address, paging, background music, and announcement applications. It is suitable for offices, schools, hospitals, commercial buildings, campuses, and other indoor environments where centralized network-based audio communication is required. Dasscom lists the DS-10C as a 10W ceiling speaker with SIP and PoE support, making it suitable for integration into modern IP paging systems.

The DS-10C incorporates a 6-inch speaker with a frequency response of 70Hz–20kHz, average sensitivity of 91dB/1m/1W, and less than 0.1% THD. Its 90° horizontal and 50° vertical coverage pattern is designed to provide broad audio distribution over an area of approximately 30m². The speaker uses a single-channel Class-D amplifier and has a rated power specification of 10W.

As a network speaker, the DS-10C supports SIP communication and network audio codecs including G.722, G.711 A-law, G.711 U-law, and Opus. It provides a 10/100Base-T Ethernet interface and is IEEE 802.3at PoE+ compliant, allowing network connectivity and power to be delivered through Ethernet infrastructure. DHCP and static IP addressing are supported.

The speaker is housed in cold-rolled steel with a textured white epoxy finish and is designed for indoor installation. It supports both surface-mounted and flush-mounted installation, giving integrators flexibility when deploying the speaker in different ceiling environments. With its SIP compatibility, PoE+ power, wide audio response, and network-based operation, the Dasscom DS-10C is well suited for IP-based PA systems, scheduled announcements, paging, and background music applications.

Key Features

  • 10W SIP network ceiling speaker
  • 6-inch speaker
  • SIP-enabled IP audio communication
  • Supports BGM and public announcements
  • PoE+ enabled
  • IEEE 802.3at compliant
  • 10/100Base-T Ethernet
  • 91dB average sensitivity
  • 70Hz–20kHz frequency response
  • Less than 0.1% THD
  • 101dB maximum SPL at 1m (passive)
  • Single-channel Class-D amplifier
  • 90° horizontal / 50° vertical coverage
  • Approximately 30m² coverage
  • Supports G.722, G.711 A-law, G.711 U-law and Opus
  • SIP/RFC3261 support
  • DHCP and static IP addressing
  • Surface and flush mounting options
  • White finish
  • Indoor installation
  • 2-year limited warranty
  • Made in India
Weight 0.6 kg
