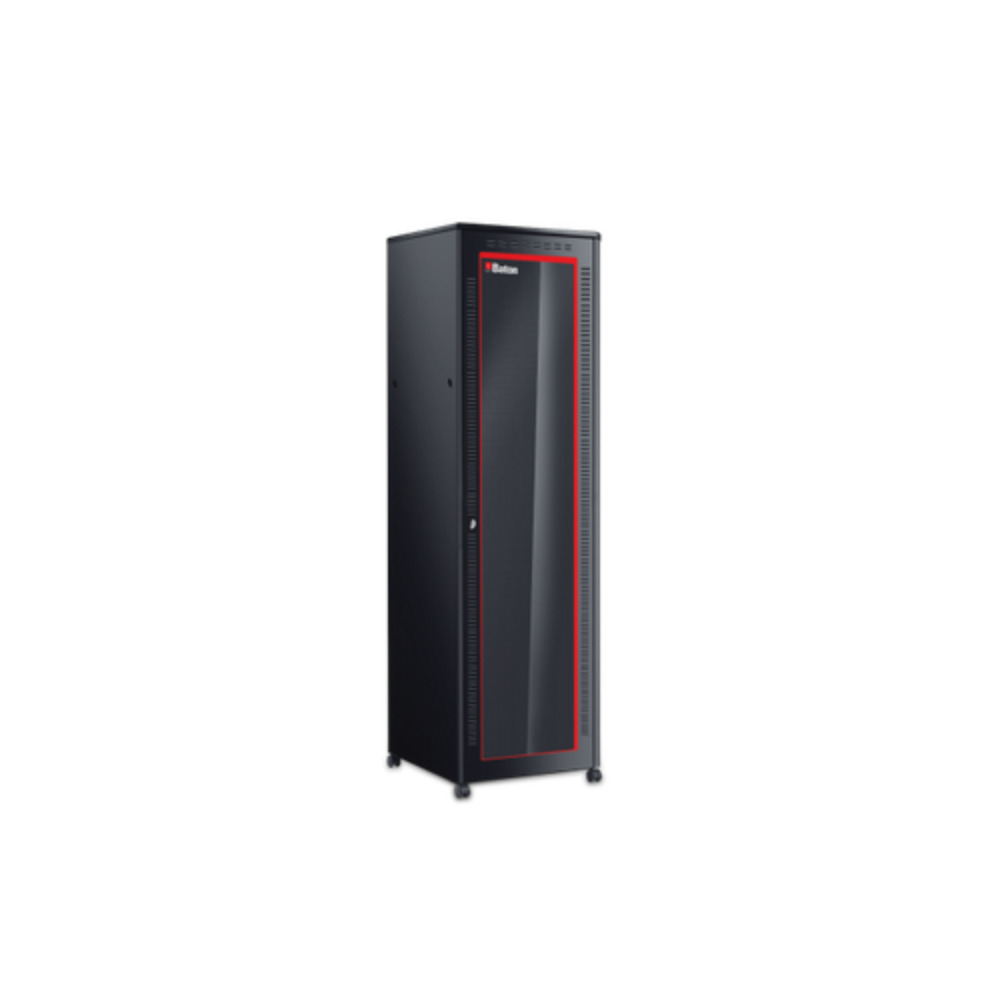

17U-Floor-Standing-Rack 600×800
17U-Floor-Standing-Rack 600×800
₹19,000.00Current price is: ₹19,000.00. Original price was: ₹27,700.00.
Rigid welded frame. Depth 800 Top and bottom cable entry provision. Glass door with lock. Side Panesl 2nos Ships fully assembled Front Glass Door section will be hinged to Rear Section with locking provision. Basic Frame : MS, CRCA 90 CFM Fan, 2nos Horizontal Cable Manager 1U Loop, 1no PDU 6 Sockets 5/13 Amps Hardware Kit Manufacturing Standard: ISO 9001:2008
Specification & Features
| Attribute | Typical / Expected Spec / Detail |
|---|---|
| Rack Units (Height capacity) | 17U (1U = 44.45 mm) — total usable rack height for mounting 19″ equipment. datarackindia.com+2netrackindia.com+2 |
| External footprint (W × D) | ~ 600 mm (width) × 800 mm (depth) netrackindia.com+1 |
| Mounting standard | 19″ rack mounting standard (DIN 41494 / equivalent) — 19″ rails with 10mm square slots or M6 tapped holes. datarackindia.com+2its.dlink.co.in+2 |
| Construction / Material | Welded (or sometimes CKD / knock-down) steel frame (often CRCA steel) with powder-coated finish for durability. store.namasteinfo.com+2datarackindia.com+2 |
| Doors & Panels | Lockable front door (toughened glass or perforated/vented metal), vented or perforated steel rear door. Side panels often removable. store.namasteinfo.com+2datarackindia.com+2 |
| Ventilation / Cooling provision | Vented top and bottom panels, cable-entry cutouts at top & bottom. Provision for fan-mounting on top panel in many racks. store.namasteinfo.com+2its.dlink.co.in+2 |
| Mounting Rails / Angle | 19″ mounting angles made of formed steel. datarackindia.com+1 |
| Mobility / Base | Floor-standing design with castor wheels (typically 4; front 2 with brakes, rear without) — often with option for levelers or base plinth. datarackindia.com+2its.dlink.co.in+2 |
| Static Load Capacity (approx.) | Varies — some 17U 600×800–type racks list static load ~ 250 kg. store.namasteinfo.com+1 In other floor-standing frame designs (depending on build quality), static load ratings could be higher (some larger-depth racks rated for ~ 500–750 kg) depending on wheels vs levelers. datarackindia.com+1 |
| Cable Management / Entry | Cable entry / exit cutouts at top & bottom panels, often with grounding / bonding provisions. store.namasteinfo.com+1 |
| Finish / Colour | Powder-coated — commonly available in black or grey (or off-white / RAL-coded finishes). datarackindia.com+1 |
| Use Cases | Networking equipment, small servers, telecom gear, AV install, data-closets, small server / lab setups. |
| Weight | 85 kg |
|---|
