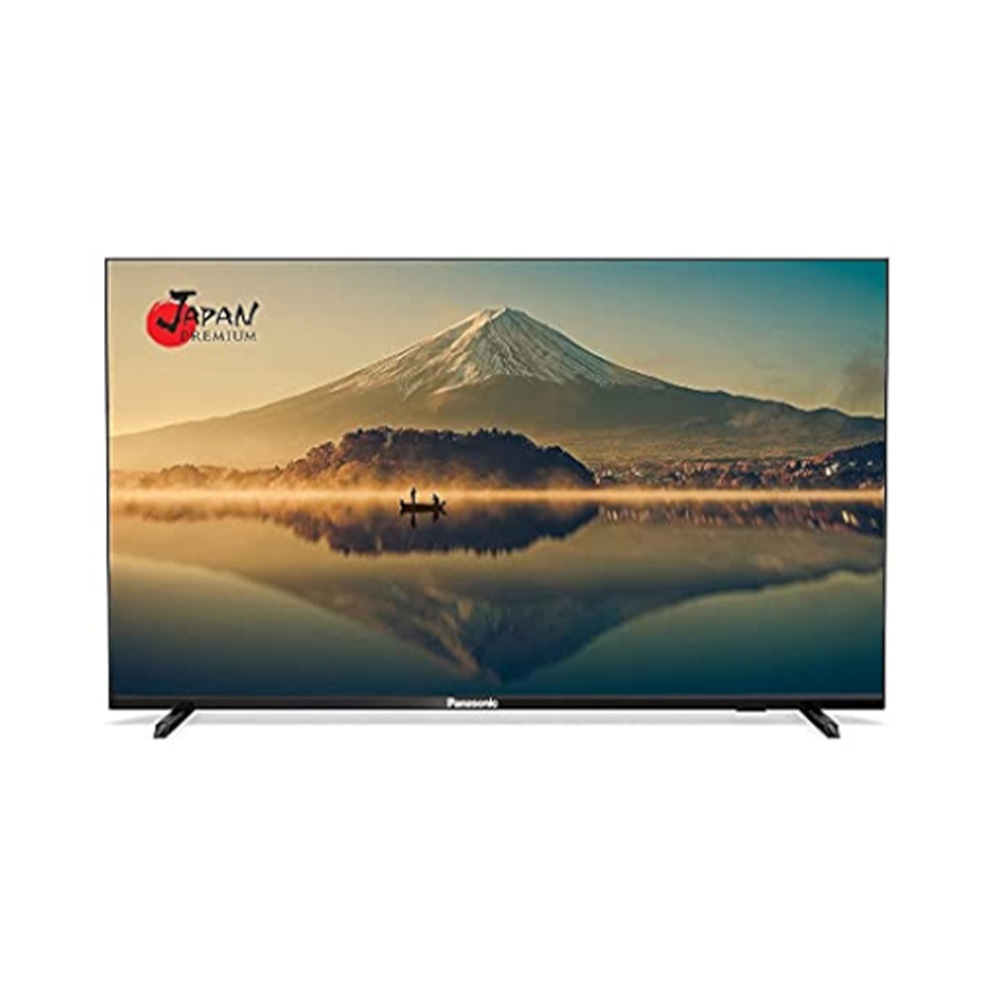

Panasonic 65 Inch TH-65LFE8 display is a professional screen offering crisp Full HD picture quality, slim and durable design, energy efficient performance and versatile connectivity ideal for conference rooms, classrooms and digital signage
Contrast | 50001 |
HDMI Type | A X 2, LAN X 1,VGA x 1, DVI-D x 1,RS-232 Compatible, USB X 1 |
Built In Speaker | 20 Watt ( 10+10 ) |
Features | Orientation-Landscape/Portrait Free Wall Mount Kit |
Model | TH-65LFE8 |
Spec Category | Details |
---|---|
Display Panel | 65-inch (1638 mm diagonal) VA panel, Edge-LED backlight Native resolution: Full HD 1920×1080 Aspect ratio: 16:9 |
Brightness & Contrast | Typical Brightness: ~ 350 cd/m² (typical) Contrast ratio (typical): ~ 5,000:1 Viewing angle: horizontal/vertical ~ 176° / 176° (CR ≥ 20) Response time (grey-to-grey): ~ 6.5 ms |
Physical / Dimensions | Visible display area (W × H): ~ 1428 × 803 mm Overall dimensions (W × H × D): ~ 1451 × 829 × 62 mm Weight (net): ~ 36.2 kg Carton / packaging weight: ~ 47 kg approx. Bezel width: Top/Left/Right ≈ 7.5 mm; Bottom ≈ 10.5 mm VESA mount pattern: 400 × 400 mm (holes depth ~20 mm) |
Connectivity / Ports | • HDMI inputs: 2 × HDMI Type-A • DVI-D input: 1 × DVI-D 24-pin (HDCP 1.1 compliant) • Video input: 4-pole mini jack (M3) ×1 • Audio input / output: stereo mini jack etc. • USB: USB 2.0 Type-A ×1 (5 V/1A) for e.g. media input or USB memory player etc. • LAN (RJ-45) 10/100 Mbps for control / network management etc. • Serial (RS-232C) for control; IR In/Out; no built-in TV tuner (for the display / signage version) |
Audio | Two built-in speakers, total power ~ 20 W (10 W + 10 W) Audio out / line out available via the mini jack for external amplification or usage. |
Power / Environmental | Power input: 220-240 VAC, 50/60 Hz Power consumption: ~ 160 W (typical On Mode) Standby power: ~ 0.5 W Power Off (no power) condition: ~ 0.3 W Operating temperature: 0-40 °C; humidity range likely ~ 20-80% RH (non‐condensing) Rated panel lifetime: ~ 50,000 hours typical until half brightness (for Edge-LED backlight) |
Other Features | Supports portrait and landscape orientation (you can mount it either way) Video wall / multi-display features in some versions (frame compensation, synchronization) USB media player (for signage use) / input-search / auto-picture positioning etc. Control compatibility: IR in/out daisy chain, RS-232, LAN for network control / monitoring etc. |
