Key Specifications & Features

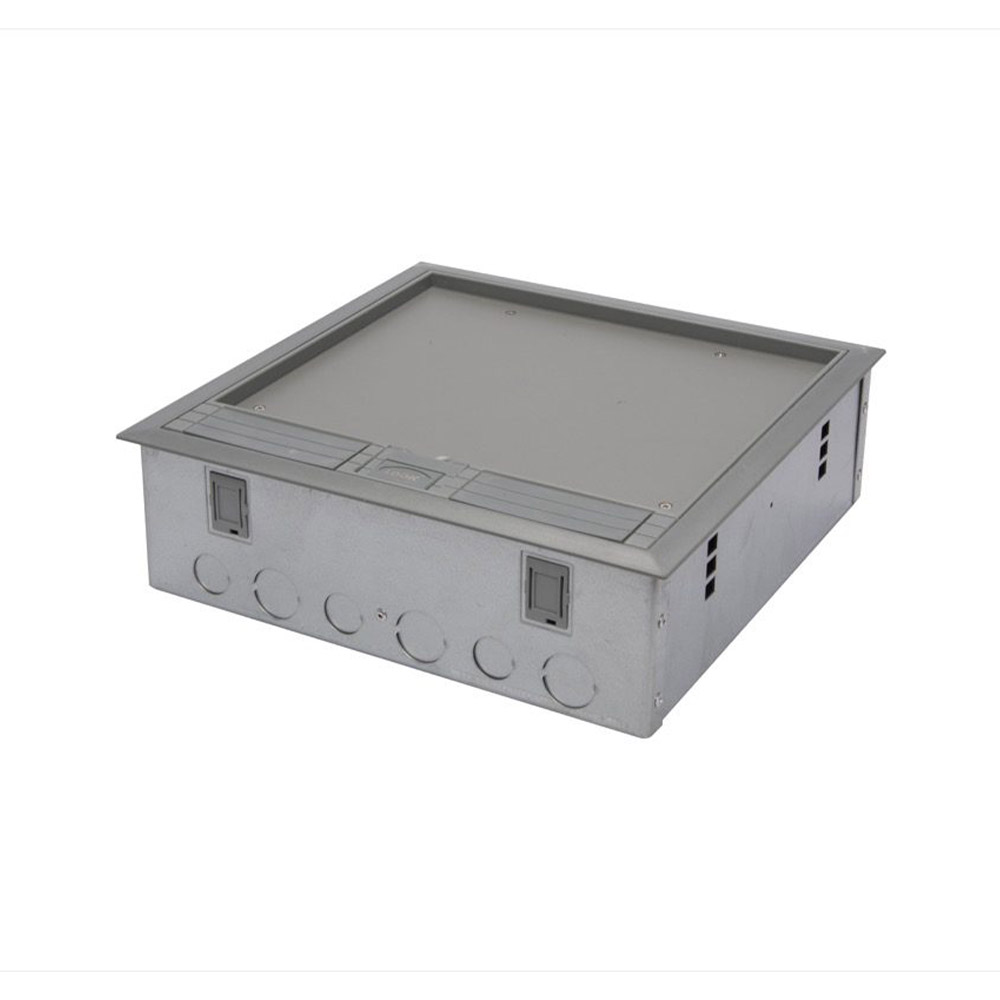

• Product: LG-FB201 – Floor Box (configured for AV use) by LOGIC. Imimg+1

• Primary use: Designed as a “one-box solution for many applications”, configurable with removable modules, intended for audio/video integration (in raised floors, auditorium desks, meeting rooms). Imimg+1

• Materials: Steel + PVC construction. Imimg+1

• Dimensions & cut-out requirements:

  • Floor cut-out: ~265 × 265 mm (or 267 × 267mm) depending on document. Imimg+1

  • Depth: ~80 mm. Imimg+1

  • Plug top clearance: ~30 mm. Imimg+1

  • Overall frame & lid: ~270 × 270 mm. Imimg+1

• Weight: Product weight ~3.5 kg; Shipping weight ~4.0 kg. Imimg+1

• Colour / finish: Grey (for frame) typical. Imimg+1

• Configuration: Comes with a flat plate inside where ports can be customised (for AV connectors, power sockets etc). Imimg
