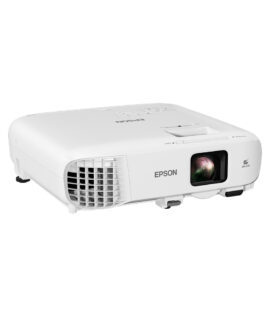

Key Specifications
-
Projection System: 3LCD Technology (RGB liquid crystal shutter) Epson Media Server+1
-
Native Resolution: WXGA (1,280 × 800) Epson India+1
-
Aspect Ratio: 16 : 10 epson.co.id+1
-
Brightness (White & Colour Light Output): 3,700 lumens (Normal mode) Epson India+1
-
Contrast Ratio: 16,000 : 1 comx.co.za+1
-
Throw Ratio: 1.30 – 1.56 :1 comx.co.za+1
-
Zoom Ratio: Manual 1.0 – 1.2× Epson India+1
-
Lens F-Number / Focal Length: f/1.49-1.72, 16.9-20.28 mm Epson Shop+1
-
Screen Size Range: 33″ up to ~320″ diagonal Epson India+1
-
Lamp Type & Life: 210 W UHE Lamp; typical life ~6,000 hours (Normal) / 12,000 hours (Eco) fsm.com.my+1
-
Dimensions & Weight: Approx. 302 × 237 × 82 mm (or similar) and around 2.5 kg epson.co.id+1
-
Fan Noise: ~37 dB (Normal) / ~28 dB (Eco) fsm.com.my
-
Operating Environment: 0–3,048 m altitude; 5 °C-40 °C common range epson.co.id
-

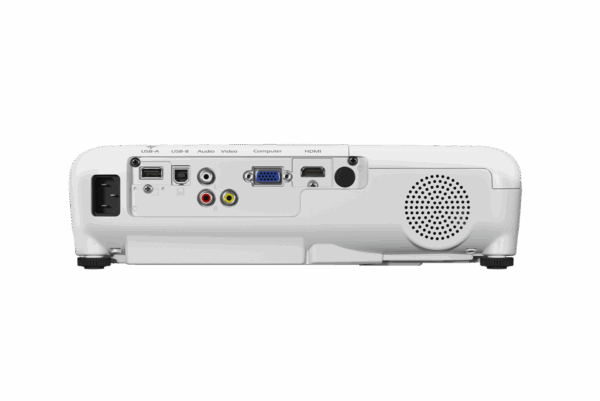

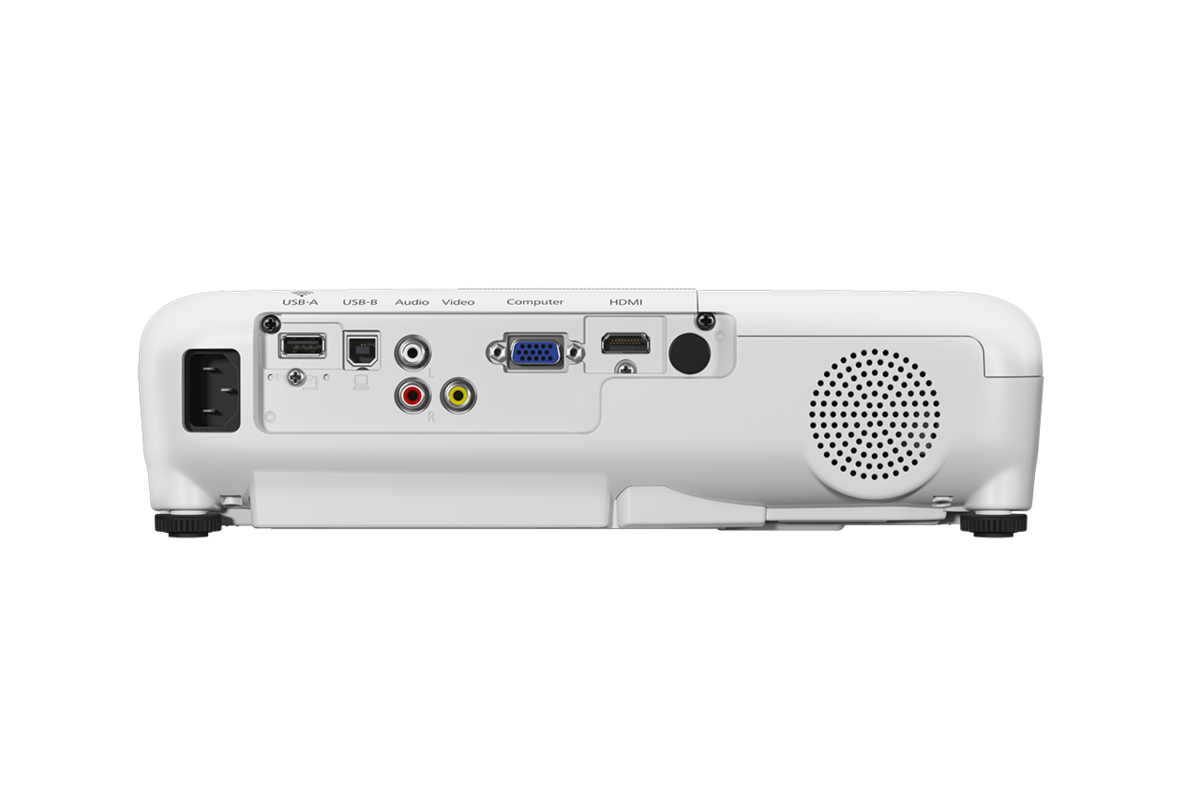

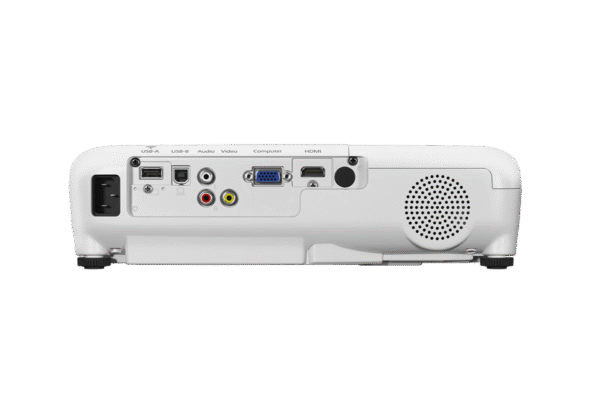

Connectivity (selected): HDMI input, VGA input, USB (for firmware/update/copy OSD), Composite, optional Wireless LAN via adapter epson.co.id+1
-
Keystone Correction: Auto Vertical ±30°; Manual Horizontal ±30°; “Quick Corner” correction supported
