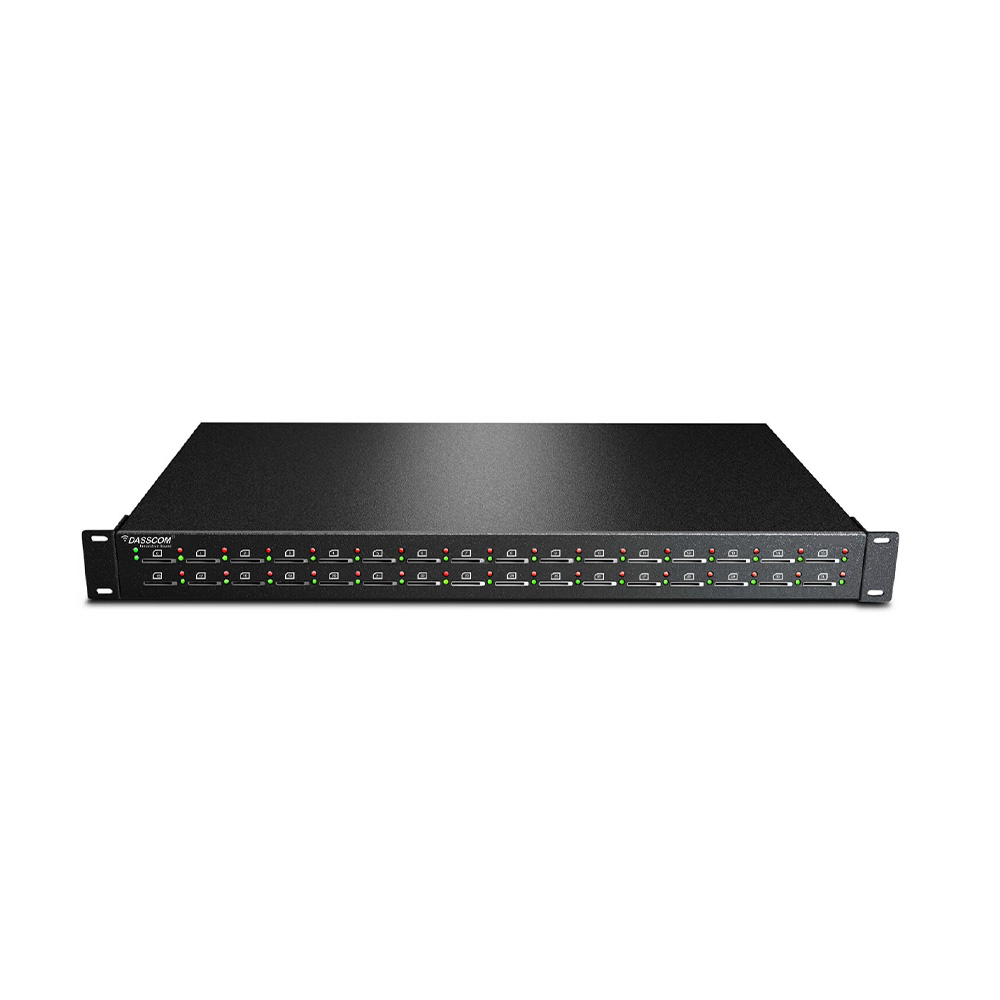

Dasscom 32 port GSM gateway
View details

Dasscom 32 port GSM gateway

Sold: 0

₹78,000.00

Dasscom DXG-3200X Wireless Gateway, the latest DXG Series members, couldbe compliant with a variety of wireless/mobile protocols enabling interconnection betweenGSM/CDMA/WCDMA/LTE network and VoIP network smoothly and safely. It is able to bridge wirelessnetwork with IP networks efficiently, regarding to the high-demanding user requirements. DXG-32 0Xadapts self-propelled SIM card slots, advanced built-in VoIP processors andwireless odules, and helps enterprises and SPs launch diverse cost-efficient and communicationsystems. DXG-3200X could also be applied flexible Wireless-to-IP ntorange of systems, including remotebilling and charge, Mobility PBX, PSTN bac up lines, VoIP localization, SMS platform and more

Categories:
Dinstar MTG200C-2E1 Port PRI Gateway
Dasscom 32 port GSM gateway VOLTE
Number Of Ports 32 Port
Usage/Application Calling
Network Type 2G
Model Name/Number DXG-3200G
Compatible Brand Dasscom
Color Black
Power Supply 12V
Antenna long antenna
Ethernet Ports 2
Country of Origin Made in India



Key Specifications & Features

  • Model: DXG-3200G (32 ports) from Dasscom. ExportersIndia+3hubrisindia.co.in+3Dasscom+3

  • Port capacity: 32 channels/ports (32 SIM slots or 32 GSM/trunks) for wireless-to-IP conversion. Imimg+1

  • Wireless network support (in the datasheet for variant DXG-3200X which appears to share architecture):

    • GSM: 850/900/1800/1900 MHz. Imimg

    • Also mention of CDMA, UMTS, LTE in the “X” variant. Imimg+1

  • VoIP & SIP support:

    • SIP v2.0 (RFC 3261) compliant. Imimg+1

    • Supports NAT traversal (STUN etc) in the spec sheet. Imimg

  • Voice codecs supported: G.711A/µ, G.729A/B, G.723, G.722, AMR, iLBC. Imimg

  • Interfaces:

    • 2 × Ethernet ports (10/100 Mbps) (see spec sheet) for WAN/LAN. Imimg

    • Console port: RJ-45 RS232, 115200 bps. Imimg

    • Antenna connectors (SMA) for each GSM channel. Imimg

  • Physical / environmental:

    • Dimensions: ~440 × 44 × 200 mm. Weight: ~3.5 kg (net) for the 32-port variant. Dasscom+1

    • Operating temperature: 0 °C to –55 °C (though that seems odd in spec sheet — maybe 0-55 °C) and storage: –20 °C to –85 °C. Humidity: 8%-90% non-condensing. Dasscom

  • Power: Input 12 V ±10%, input current ~23A for “X” variant in specs. Imimg

  • Features:

    • Web-based management UI, backup/restore config, firmware upgrade via HTTP/TFTP, CDR logging and tracking. Imimg+1

    • Call time restriction, SIM card/Single call operator locking. Imimg

    • Multi-SIM slot support, circular use of SIMs, remote SIM management mentioned. Imimg

    • Supports voice and SMS (ASCII/UCS2) in spec sheet. Imimg

🔍 Application & Suitability

  • Good for bridging GSM mobile channels (up to 32) to SIP/VoIP networks — useful for outbound/inbound mobile voice campaigns, call centres, backup lines via mobile, SMS/USSD integration.

  • The multi-SIM support and flexible SIM management (switching SIMs, operator locking) means it can be used for cost optimisation (choosing cheapest mobile network) or redundancy.

  • For Indian context: The GSM frequency support includes 900/1800 which is used commonly in India, so that’s good. You’ll want to verify mobile network licensing and SIM-usage compliance in India (bulk termination via mobile may have regulatory issues).

  • Good for integrated environments with SIP trunks, IP-PBX (e.g. Asterisk/FreeSWITCH) and need of 30+ mobile channels.

Weight 3.2 kg
