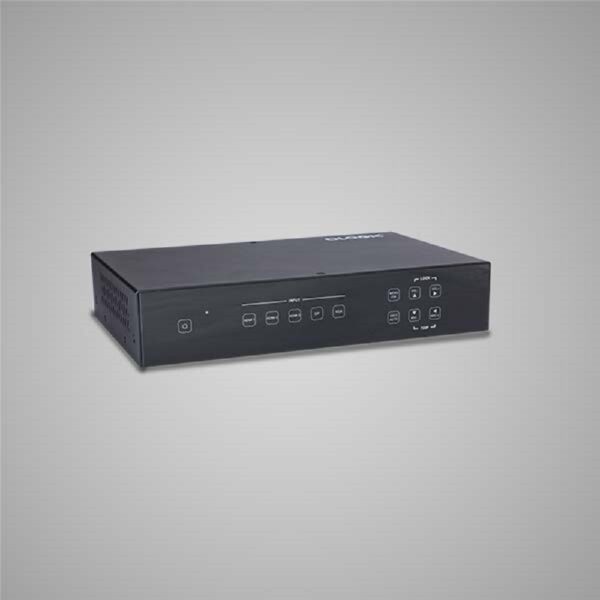

LG-SS501M-H is a presentation switcher which supports 5 inputs, including 3 HDMI ports, 1 VGA(YPbPr/CVBS), and 1 DisplayPort, scaling to HDMI and HD BaseT outputs (Mirrored).
FEATURES
1. HDMI 2.0b, HDCP 2.2 compliant
2. 3xHDMI, 1xVGA (YPbPr/CVBS), 1xDisplayPort, 1xMIC In, and 4xunbalance audio input
3. HDMI and HDBaseT(70M) outputs (Mirrored)
4. HDMI/DP video resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p @120Hz
5. VGA resolution up to 1920x1200p@60Hz
6. Output resolution up to 4K2K@30Hz
7. Supports automatic and manual switching modes
8. Supports EDID management
9. Supports pass-through of PCM 2CH
10. Touch Panel button, WebGUI, IR remote, Desk Plate, and RS-232 control
