Logic Scalar Switcher- LG-SS201m

MIVA Price

Call for Price

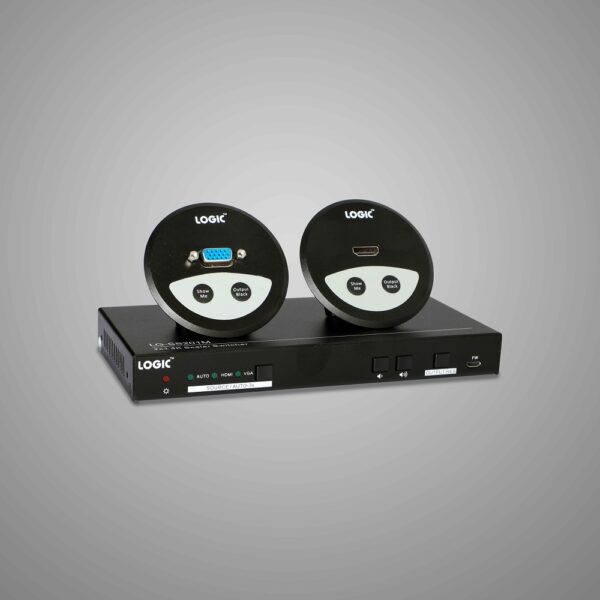

LG-SS201M KIT is a professional 4K Scaler Switcher Kit, which consists of a LG-SS201M Scaler Switcher, a LG-SS201MGH and LG-SS201MGV table grommets. The LG-SS201M scales HDMI/VGA video signal to an HD BaseT output by selecting output resolution from 720p to 4K via OSD.
1. HDMI input and 1 VGA input with auxiliary audio input
2. The output resolution can be selected from 720p to 4k x 2k @30Hz 4:4:4 to assure preferred output
3. Transmits 4Kx2K up to 131ft (40m) or 1080p up to 230ft (70m) via HDBaseT port
4. Supports volume control via buttons
5. Supports HDMI/VGA table grommets to control source switching and black screen showing
6. Automatically switch based on video sensing
7. Supports RS232 pass-through to communicate control signal between the scaler and the connected HDBaseT matrix or receiver
8. Allows the connected source and display to be controlled via bi-directional IR pass with remote
9. Supports bi-directional PoH, the HDBaseT receiver can be powered by this KIT or this KIT can be powered by receiver via HDBaseT port

SKU: SKU-AV PROD-AC-153 Category:
